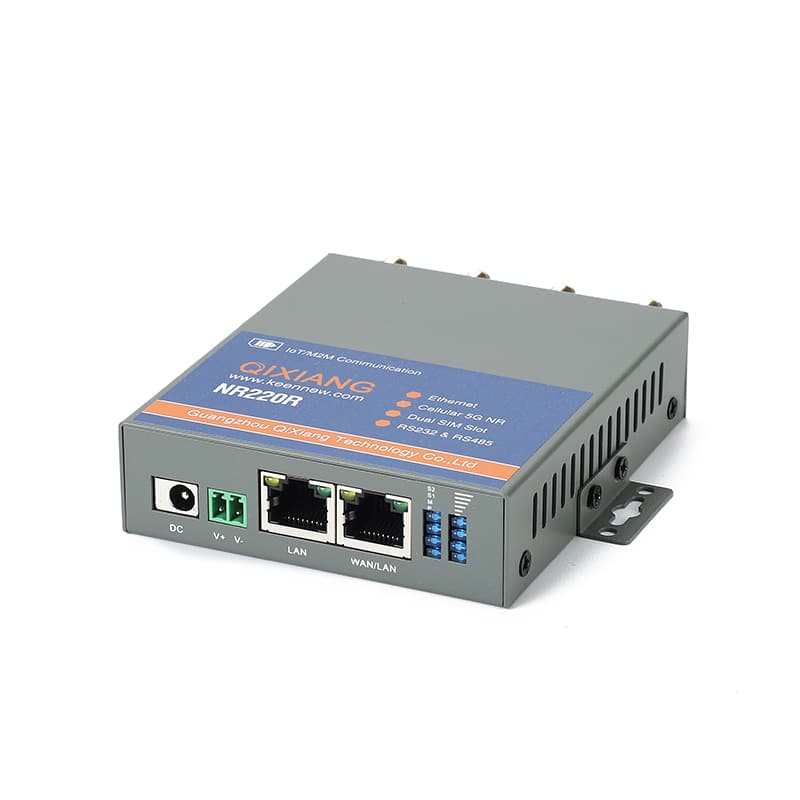

NR220R High Speed 5G Router

NR220R High Speed 5G Router

$279.00 USD
$279.00 USD
Sale Sold out
Shipping calculated at checkout.
Model

The NR220R is a 5G router featuring ultra-high cellular speed, dual SIM with auto-failover, two Gigabit Ethernet ports, serial RS-232 and RS-485. The NR220R supports both SA and NSA 5G architectures and is backward compatible with 4G (Cat 20) and 3G, ensuring robust and reliable performance, super fast network access for mission-critical mass data applications such as high-definition video stream backhaul and remote equipment maintenance, smart factories, medical equipment, robot vision, video surveillance, smart energy and other industrial fields.

Model Guide

NR220R-E EMEA/APAC/Australia

  • Serial Port: RS232 and RS485
  • Cellular Bands:
  • 5G NR SA: N1/3/5/7/8/20/28/38/40/41/77/78/79
  • 5G NR NSA: N1/3/5/7/8/20/28/38/40/41/77/78/79
  • 4G LTE FDD: B1/3/5/7/8/18/19/20/26/28/32/71
  • 4G LTE TDD: B38/39/40/41/42
  • 3G WCDMA: B1/5/8



NR220R-N North/South America

  • Serial Port: RS232 and RS485
  • 5G NR SA: N2/5/7/12/13/14/25/38/41/48/66/71/77/78
  • 5G NR NSA: N2/5/7/12/13/14/25/38/41/48/66/71/77/78
  • 4G LTE FDD: B2/4/5/7/12/13/14/17/25/26/66/71
  • 4G LTE TDD: B38/41/42/43/48
  • 3G WCDMA: B2/4/5

Package Content

  • Router NR220R
  • Power Supply Adapter Plug (US/UK/AU/EU standard options, Select according to your delivery address)
  • 4x Mobile 5G antenna (SMA type)
  • Ethernet cable
  • SIM Adapter kit
  • Quick Start Guide
  • Packaging box

Shipping

  • Product ship from China.
  • Shipping begin within 72 Hours after order placed.
  • Shipping leadtime to most North America, Asia and Europe country is aorund 5-10 days.
  • Global Tech Support.



Documents

Datasheet

User Manual (Quick Guide)

View full details

We Also Recommend

View all

NR220R Specification

Key Features

# Low cost industrial 5G Router

# Highly reliable Global 5G/4G/3G cellular connections

# Gigabit Ethernet, 5G/4G internet connection, and Dual SIM auto-failover

# Robust industrial design (9 to 32V DC, desktop, wall mount or DIN rail mounting, 3.5 mm 5-pin socket connectors)

# Robust metal enclosure with small compact size, DIN-rail + wall mount options

# Multiple VPN client modes protocols: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP



Cellular Interface

  • Module: 5G NR 300Mbps/4Gbps, 4G (LTE) – CAT 20 speed up to 200 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • Number of antennas: 4 External Antenna
  • Connector: SMA-K
  • SIM: 2 Nano SIM

Ethernet Interface

  • Number of ports: 2 x 10/100/1000 Mbps (RJ45), 1 x LAN + 1 x WAN or 2 x LAN; IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • Magnet isolation protection: 1.5 KV

Serial Interface

  • Type: 1 x RS-232 or 1 x RS-485 serial port
  • Connector: 1 x 5-pin 3.5 mm female socket
  • Signal definition: RS232: TX, RX, GND; RS485: A, B
  • Baudrate: 300-115200bps
  • Serial functions: Serial over IP, Serial to Ethernet, DTU Modem, Modbus gateway, Modbus RTU Master/Slave, Modbus TCP Master/Slave, Modbus RTU to Modbus TCP, Modbus TCP to Modbus RTU transfer
  • Transparent transmission: Mode: TCP Server/Client, UDP Server/Client, RealCom, UDP Range, UDP Multicast, Pair Master/Slave

Others

  • Reset button: 1 x RST
  • LED indicators: 1 x P, 1 x M, 1 x S1, 1 x S2,1 x Signal
  • Watchdog: Built-in Hardware and Software

Hardware & Physical Characteristics

  • CPU: Dual Core 880MHz
  • RAM: 256 MB
  • FLASH memory: 16 MB
  • Ingress Protection: IP41
  • Housing & Weight: Metal, 230g
  • Dimension: 100 x 85 x 25 mm (L x W x H)
  • Installations: Desktop, wall mounting and 35 mm DIN rail mounting
  • Operating temperature: -30 °C to 70 °C
  • Storage temperature: -40 °C to 85 °C
  • Relative humidity: <95%(no condensation)

Power Supply and Consumption

  • Power Connector: DC Round Hole Power, DC 2-pin 3.5 mm female socket
  • Voltage Input: 7.5 – 32 V DC, reverse polarity protection, surge protection
  • Power consumption: < 3 W

Software (Qixiang OS)

  • Network protocols: PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP , ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, FTP, SNMP, DDNS, UPnP, MQTT, QoS etc.
  • APN: Auto APN, customs APN, and VPDN
  • VPN Client Modes:  PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP
  • Firewall: DMZ, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control, NAT, Port Forword, Black/White List
  • Auto Fail-over (Optional): Between Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode)
  • Load Balancing (Optional): Balance your internet traffic over multiple WAN connections
  • Network Monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • SDK: SDK package with built environment provided
  • Remote Management: HTTP, Qixiang Cloud Platform

Regulatory and Type Approvals

  • Regulatory: CE, RoHS, Wi-Fi Certified, CCC
  • Operator: Global, customize for your country's cellular bands
  • Standards: EN 301 489-1 V2.2.0:2017; EN 301 489-17 V3.2.0:2017; EN 300 328 V2.1.1:2016; EN 62311:2008; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; IEC 62321:2013/2015. etc.
