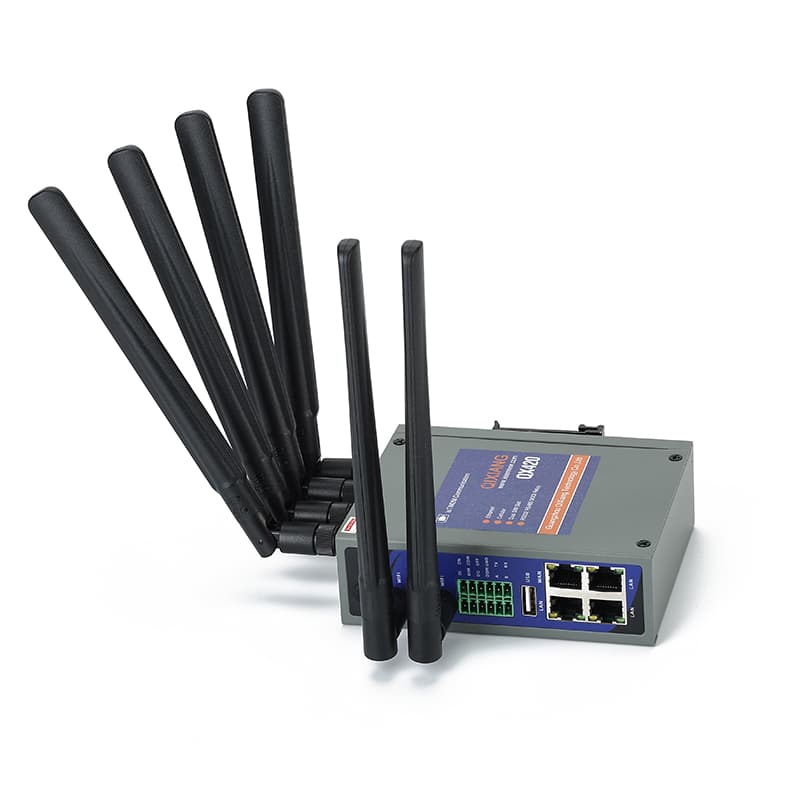

QX420 Dual SIM DIN-Rail Industrial 4G LTE Router

QX420 Dual SIM DIN-Rail Industrial 4G LTE Router

$199.00 USD
$259.00 USD $199.00 USD
Sale Sold out
Shipping calculated at checkout.
Model

QX420 is an advantage router with rich interfaces such as Dual SIM card slots (single standby), DIN-Rail bracket, RS-232, RS-485, 4G LTE, WiFi, DO/DI, USB port, and Relay. It supports Ethernet, Serial, DO/DI, and replay data transmission for many customers in the vertical industries. The device is easy to deploy and ensures high performance, providing automatic WAN failover to an available backup connection, guaranteeing network continuity and eliminating downtime.

Model Guide

RS232+RS485 | QX420-NW North America

  • Serial Port: RS232 and RS485
  • Cellular Bands:
  • 4G LTE-FDD:B2/4/5/12/13/17/18/25/26
  • 4G LTE-TDD:B41
  • 3G WCDMA:B2/4/5
  • 2G EVDO:BC0/1
  • 2G GSM:850/1900



RS232+RS485 | QX420-EW EMEA/APAC

  • Serial Port: RS232 and RS485
  • Cellular Bands:
  • 4G LTE-FDD:B1/3/5/7/8/20/28
  • 4G LTE-TDD:B38/40/41
  • 3G WCDMA:B1/8
  • 2G GSM:900/1800



RS232+RS485 | QX420-AW Australia/South America

  • Serial Port: RS232 and RS485
  • Cellular Bands:
  • 4G LTE FDD:B1/2/3/4/5/7/8/28/66
  • 4G LTE TDD:B40
  • 3G WCDMA:B1/2/4/5/8
  • 2G GSM:850/900/1800/1900

Package Content

  • Router QX420
  • Power Supply Adapter Plug (US/UK/AU/EU standard options, Select according to your delivery address)
  • 1x Mobile antenna (SMA type)
  • 2x Wi-Fi antenna (SMA type)
  • Ethernet cable
  • SIM Adapter kit
  • Quick Start Guide
  • Packaging box

Shipping

  • Product ship from China.
  • Shipping begin within 72 Hours after order placed.
  • Shipping leadtime to most North America, Asia and Europe country is aorund 5-10 days.
  • Global Tech Support.



Documents

Datasheet

User Manual (Quick Guide)

View full details

We Also Recommend

View all

QX420 Specification

Key Features

# Ethernet, WiFi, 4G internet connection with WAN auto-failover

# Rich interfaces: Dual SIM card slots (single standby), DIN-Rail bracket, RS-232, RS-485, 4G LTE, WiFi, DO/DI, USB port and Relay

# Robust industrial design (9 to 32V DC, desktop or DIN rail mounting, 3.5 mm 10-pin socket connectors)

# Highly reliable 2G/3G/4G cellular connections

# Multiple VPN client modes protocols: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP



Cellular Interface

  • Module: 4G (LTE) – CAT 4 Theoretical speed up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • Number of antennas: 1 External Antenna
  • Connector: SMA-K
  • SIM: 2 Nano SIM

Ethernet Interface

  • Number of ports: 4 x 10/100/1000 Mbps (RJ45), 3 x LAN + 1 x WAN or 4 x LAN; IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • Magnet isolation protection: 1.5 KV

Wi-Fi Interface

  • Number of antennas: 2 External Antenna
  • Connector: SMA-K
  • Standards: 802.11 b/g/n/ac, supports AP and Client modes, Max up to 150Mbps
  • Frequency bands: 2.4 GHz/5.8 Ghz
  • Security: WEP, WPA, WPA2, WPA3

Serial Interface

  • Type: 1 x RS-232 and 1 x RS-485 serial port
  • Connector: 1 x 5-pin 3.5 mm female socket
  • Signal definition: RS232: TX, RX, GND; RS485: A, B
  • Baudrate: 300-115200bps
  • Serial functions: Serial over IP, Serial to Ethernet, DTU Modem, Modbus gateway, Modbus RTU Master/Slave, Modbus TCP Master/Slave, Modbus RTU to Modbus TCP, Modbus TCP to Modbus RTU transfer
  • Transparent transmission: Mode: TCP Server/Client, UDP Server/Client, RealCom, UDP Range, UDP Multicast, Pair Master/Slave

DI/DO

  • Type: 1 x DI + 1 x DO
  • Connector: 4-pin 3.5 mm female socket

Others

  • Relay: 1 x 3-pin 3.5 mm female socket
  • USB: 1 USB Port
  • Reset button: 1 x RST
  • LED indicators:  "PWR", “SIM1”, “SIM2”, “GPS”, "WiFi", 3×"Signal"
  • Watchdog: Built-in Hardware and Software

Hardware & Physical Characteristics

  • CPU: Dual Core 880MHz
  • RAM: 256 MB
  • FLASH memory: 16 MB
  • Ingress Protection: IP41
  • Housing & Weight: Metal, 420g
  • Dimension: 127 x 102 x 40 mm (L x W x H)
  • Installations: Desktop, 35 mm DIN rail mounting
  • Operating temperature: -30 °C to 70 °C
  • Storage temperature: -40 °C to 85 °C
  • Relative humidity: <95%(no condensation)

Power Supply and Consumption

  • Power Connector: DC Round Hole Power, DC 2-pin 3.5 mm female socket
  • Voltage Input: 7.5 – 32 V DC, reverse polarity protection, surge protection
  • Power consumption: < 3 W

Software (Qixiang OS)

  • Network protocols: PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP , ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, FTP, SNMP, DDNS, UPnP, MQTT, QoS etc.
  • APN: Auto APN, customs APN, and VPDN
  • VPN Client Modes: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP
  • Firewall: DMZ, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control, NAT, Port Forword, Black/White List
  • Auto Fail-over (Optional): Between Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode)
  • Load Balancing (Optional): Balance your internet traffic over multiple WAN connections
  • Network Monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • SDK: SDK package with built environment provided
  • Remote Management: HTTP, Qixiang Cloud Platform

Regulatory and Type Approvals

  • Regulatory: CE, RoHS, Wi-Fi Certified, CCC
  • Operator: Global, customize for your country's cellular bands
  • Standards: EN 301 489-1 V2.2.0:2017; EN 301 489-17 V3.2.0:2017; EN 300 328 V2.1.1:2016; EN 62311:2008; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; IEC 62321:2013/2015. etc.
