QX310 DIN-Rail Industrial 4G Router

QX310 DIN-Rail Industrial 4G Router

$159.00 USD
$199.00 USD $159.00 USD
Sale Sold out
Shipping calculated at checkout.
Model

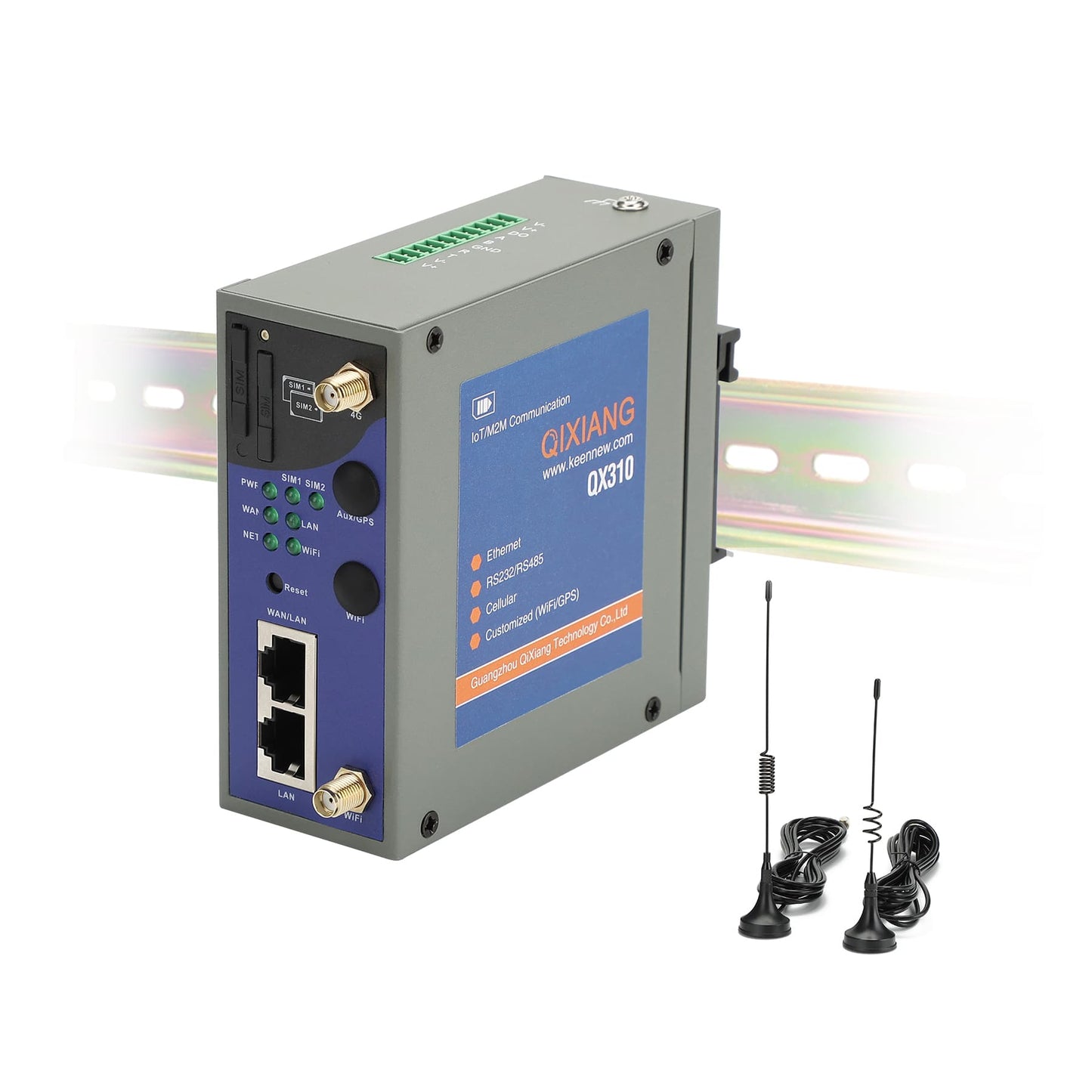

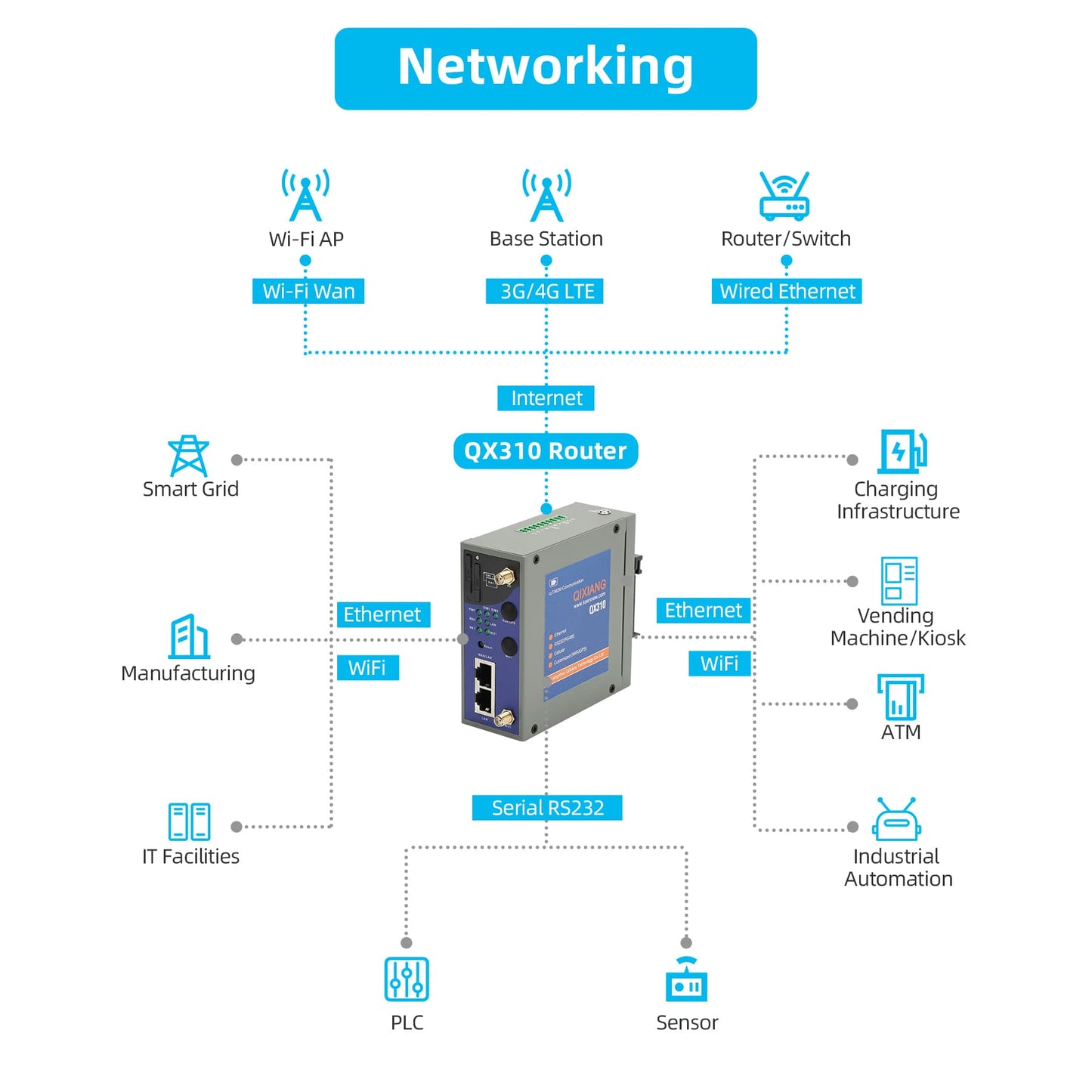

QX310 is a compact industrial router 4g device that is equipped with Dual SIM card slots (single standby), 4G LTE, WiFi, two Ethernet ports, DIN rail bracket. Qixiang OS and industrial-grade hardware provide seamless, secure, fast wireless connectivity to M2M/IoT applications in harsh environments. The 35mm DIN rail bracket and an industrial RS-232, RS-485, and power input 9-pin connectors ensure easy installation for quickly setting up primary and backup internet for many customers in the vertical industries.

Model Guide

RS232+RS485 | QX310-NW North America

  • Serial Port: RS232 and RS485
  • Cellular Bands:
  • 4G LTE-FDD:B2/4/5/12/13/17/18/25/26
  • 4G LTE-TDD:B41
  • 3G WCDMA:B2/4/5
  • 2G EVDO:BC0/1
  • 2G GSM:850/1900



RS232+RS485 | QX310-EW EMEA/APAC

  • Serial Port: RS232 and RS485
  • Cellular Bands:
  • 4G LTE-FDD:B1/3/5/7/8/20/28
  • 4G LTE-TDD:B38/40/41
  • 3G WCDMA:B1/8
  • 2G GSM:900/1800



RS232+RS485 | QX310-AW Australia/South America

  • Serial Port: RS232 and RS485
  • Cellular Bands:
  • 4G LTE FDD:B1/2/3/4/5/7/8/28/66
  • 4G LTE TDD:B40
  • 3G WCDMA:B1/2/4/5/8
  • 2G GSM:850/900/1800/1900

Package Content

  • Router QX310
  • Power Supply Adapter Plug (US/UK/AU/EU standard options, Select according to your delivery address)
  • 1x Mobile antenna (SMA type)
  • 1x Wi-Fi antenna (SMA type)
  • Ethernet cable
  • SIM Adapter kit
  • Quick Start Guide
  • Packaging box

Shipping

  • Product ship from China.
  • Shipping begin within 72 Hours after order placed.
  • Shipping leadtime to most North America, Asia and Europe country is aorund 5-10 days.
  • Global Tech Support.



Documents

Datasheet

User Manual (Quick Guide)

View full details

We Also Recommend

View all

QX310 Specification

Key Features

# Ethernet, WiFi, 4G internet connection, and Dual SIM options with auto-failover

# Robust compact industrial design (9 to 32V DC, desktop or DIN rail mounting, 3.5 mm 9-pin socket connectors)

# Highly reliable 2G/3G/4G cellular connections

# Multiple VPN client modes protocols: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP

# Serial RS-232 and RS-485 interface support for serial data transmission



Cellular Interface

  • Module: 4G (LTE) – CAT 4 Theoretical speed up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
  • Number of antennas: 1 External Antenna
  • Connector: SMA-K
  • SIM: 2 Mini SIM (2 FF)

Ethernet Interface

  • Number of ports: 2 x 10/100 Mbps (RJ45), 1 x LAN + 1 x WAN or 2 x LAN; IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • Magnet isolation protection: 1.5 KV

Wi-Fi Interface

  • Number of antennas: 1 External Antenna
  • Connector: SMA-K
  • Standards: 802.11 b/g/n, supports AP and Client modes, Max up to 150Mbps
  • Frequency bands: 2.4 GHz
  • Security: WEP, WPA, WPA2, WPA3

Serial Interface

  • Type: 1 x RS-232 and 1 x RS-485 serial port
  • Connector: 1 x 5-pin 3.5 mm female socket
  • Signal definition: RS232: TX, RX, GND; RS485: A, B
  • Baudrate: 300-115200bps
  • Serial functions: Serial over IP, Serial to Ethernet, DTU Modem, Modbus gateway, Modbus RTU Master/Slave, Modbus TCP Master/Slave, Modbus RTU to Modbus TCP, Modbus TCP to Modbus RTU transfer
  • Transparent transmission: Mode: TCP Server/Client, UDP Server/Client, RealCom, UDP Range, UDP Multicast, Pair Master/Slave

Others

  • Reset button: 1 x RST
  • LED indicators:  1 x WAN, 1 x LAN, 1 x NET, 1 x PWR, 1 x WiFi, 1 x SIM1, 1 x SIM2
  • Watchdog: Built-in Hardware and Software

Hardware & Physical Characteristics

  • CPU: 560 MHz
  • RAM: 128 MB
  • FLASH memory: 16 MB
  • Ingress Protection: IP41
  • Housing & Weight: Metal, 355g

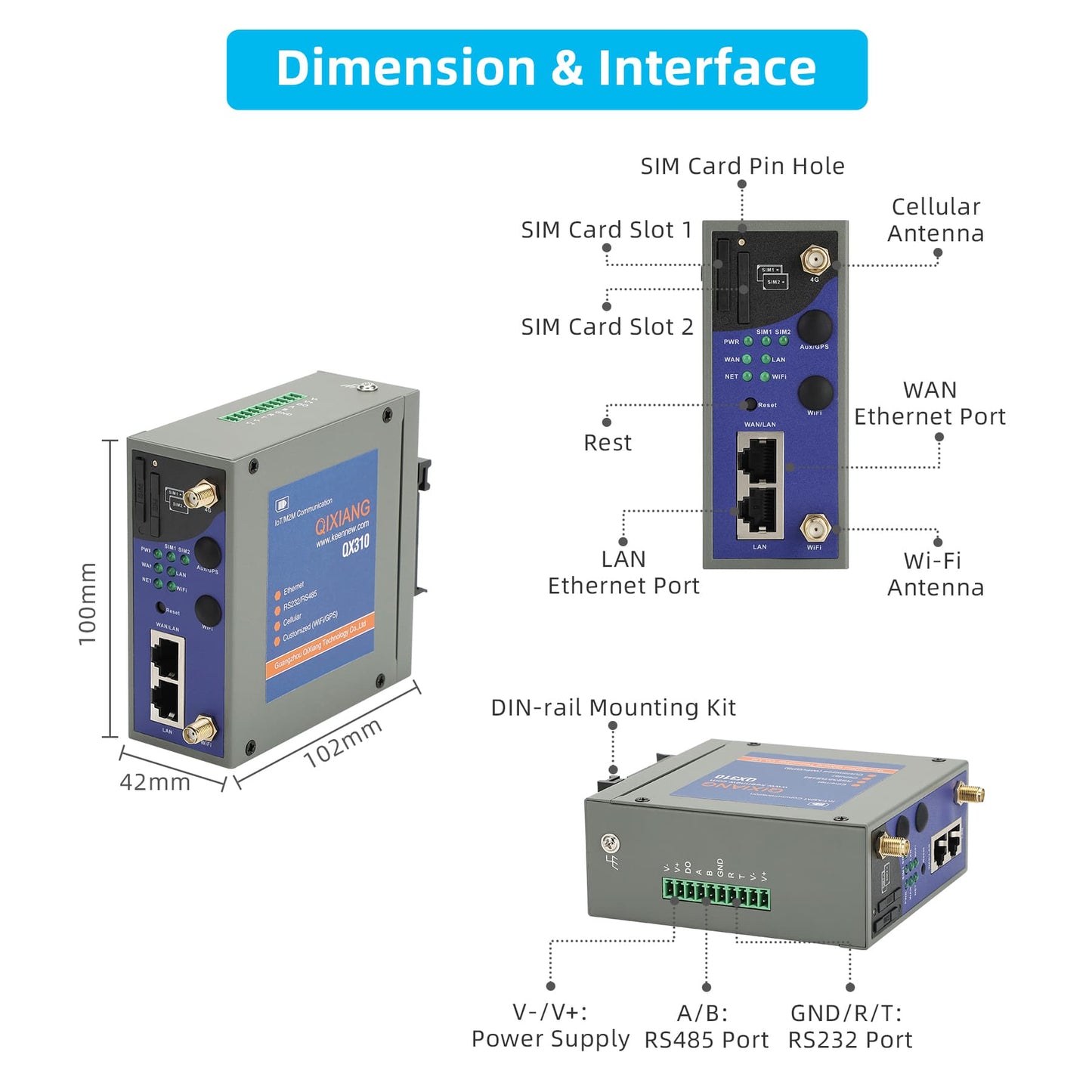

  • Dimension: 102 x 100 x 41 mm (L x W x H)
  • Installations: Desktop, 35 mm DIN rail mounting
  • Operating temperature: -30 °C to 70 °C
  • Storage temperature: -40 °C to 85 °C
  • Relative humidity: <95%(no condensation)

Power Supply and Consumption

  • Power Connector: DC 2-pin 3.5 mm female socket
  • Voltage Input: 7.5 – 32 V DC, reverse polarity protection, surge protection
  • Power consumption: < 3 W

Software (Qixiang OS)

  • Network protocols: PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP , ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, FTP, SNMP, DDNS, UPnP, MQTT, QoS etc.
  • APN: Auto APN, customs APN, and VPDN
  • VPN Client Modes: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP
  • Firewall: DMZ, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control, NAT, Port Forword, Black/White List
  • Auto Fail-over (Optional): Between Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode)
  • Load Balancing (Optional): Balance your internet traffic over multiple WAN connections
  • Network Monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • SDK: SDK package with built environment provided
  • Remote Management: HTTP, Qixiang Cloud Platform

Regulatory and Type Approvals

  • Regulatory: CE, RoHS, Wi-Fi Certified, CCC
  • Operator: Global, customize for your country's cellular bands
  • Standards: EN 301 489-1 V2.2.0:2017; EN 301 489-17 V3.2.0:2017; EN 300 328 V2.1.1:2016; EN 62311:2008; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; IEC 62321:2013/2015. etc.
