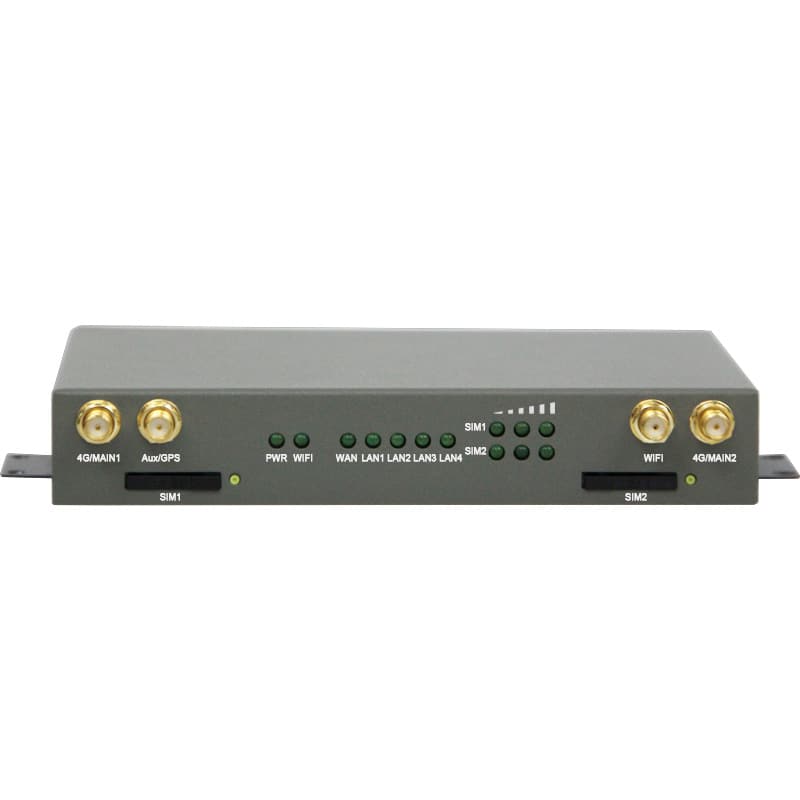

QX520 Industrial Dual SIM Router
QX520 Industrial Dual SIM Router
Couldn't load pickup availability
QX520 is the most rugged and powerful M2M router because of dual SIM slots and dual modems built-in, two SIM cards work simultaneously will always keep your business safe and transmit data flow without any interruption, ensuring high-performance, providing automatic WAN failover to an available backup connection, guaranteeing network continuity and eliminating downtime. Pre-configured firewall and multiple VPN client modes guarantee high-security connectivity performance.
Model Guide
Model Guide
RS232 | QX520-NW2 North America
- Serial Port: RS232
- Cellular Bands:
- 4G LTE-FDD:B2/4/5/12/13/17/18/25/26
- 4G LTE-TDD:B41
- 3G WCDMA:B2/4/5
- 2G EVDO:BC0/1
- 2G GSM:850/1900
RS232 | QX520-EW2 EMEA/APAC
- Serial Port: RS232
- Cellular Bands:
- 4G LTE-FDD:B1/3/5/7/8/20/28
- 4G LTE-TDD:B38/40/41
- 3G WCDMA:B1/8
- 2G GSM:900/1800
RS232 | QX520-AW2 Australia/South America
- Serial Port: RS232
- Cellular Bands:
- 4G LTE FDD:B1/2/3/4/5/7/8/28/66
- 4G LTE TDD:B40
- 3G WCDMA:B1/2/4/5/8
- 2G GSM:850/900/1800/1900
RS485 | QX520-NW4 North America
- Serial Port: RS485
- Cellular Bands:
- 4G LTE-FDD:B2/4/5/12/13/17/18/25/26
- 4G LTE-TDD:B41
- 3G WCDMA:B2/4/5
- 2G EVDO:BC0/1
- 2G GSM:850/1900
RS485 | QX520-EW4 EMEA/APAC
- Serial Port: RS485
- Cellular Bands:
- 4G LTE-FDD:B1/3/5/7/8/20/28
- 4G LTE-TDD:B38/40/41
- 3G WCDMA:B1/8
- 2G GSM:900/1800
RS485 | QX520-AW4 Australia/South America
- Serial Port: RS232485s:
- 4G LTE FDD:B1/2/3/4/5/7/8/28/66
- 4G LTE TDD:B40
- 3G WCDMA:B1/2/4/5/8
- 2G GSM:850/900/1800/1900
Package Content
Package Content
- Router QX520
- Power Supply Adapter Plug (US/UK/AU/EU standard options, Select according to your delivery address)
- 2x Mobile antenna (SMA type)
- 2x Wi-Fi antenna (SMA type)
- Ethernet cable
- SIM Adapter kit
- Quick Start Guide
- Packaging box
Shipping
Shipping
- Product ship from China.
- Shipping begin within 72 Hours after order placed.
- Shipping leadtime to most North America, Asia and Europe country is aorund 5-10 days.
- Global Tech Support.
Documents
Documents



We Also Recommend
-
NR620 5G WiFi Router
Regular price $329.00 USDRegular priceUnit price / per -
NR420 DIN-Rail Industrial 5G Router
Regular price $309.00 USDRegular priceUnit price / per -
NR220R High Speed 5G Router
Regular price $279.00 USDRegular priceUnit price / per -
QX420 Dual SIM DIN-Rail Industrial 4G LTE Router
Regular price $199.00 USDRegular priceUnit price / per$259.00 USDSale price $199.00 USDSale
QX520 Specification
Key Features
# Dual SIM card slots and dual modems built-in, two cellular links work simultaneously
# 5 Ethernet prots support enough wired devices' internet connectivity
# Reliable 2G/3G/4G cellular connections
# Ethernet, WiFi, and 4G internet connection options with auto-failover
# Advanced VPN client modes protocols integrated, and pre-configured firewall provide secure network
Cellular Interface
- Module: Dual Cellular Modules, 4G (LTE) – CAT 4 Theoretical speed up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
- Number of antennas: 2 External Antenna
- Connector: SMA-K
- SIM: 2 Mini SIM (2 FF)
Ethernet Interface
- Number of ports: 5 x 10/100 Mbps (RJ45), 4 x LAN + 1 x WAN or 5 x LAN; IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- Magnet isolation protection: 1.5 KV
Wi-Fi Interface
- Number of antennas: 2 External Antenna
- Connector: SMA-K
- Standards: 802.11 b/g/n, supports AP and Client modes, Max up to 150Mbps
- Frequency bands: 2.4 GHz
- Security: WEP, WPA, WPA2, WPA3
Serial Interface
- Type: 1 x RS-232 or 1 x RS-485 serial port
- Connector: 1 x 3-pin 3.5 mm female socket
- Signal definition: RS232: TX, RX, GND; RS485: A, B
- Baudrate: 300-115200bps
- Serial functions: Serial over IP, Serial to Ethernet, DTU Modem, Modbus gateway, Modbus RTU Master/Slave, Modbus TCP Master/Slave, Modbus RTU to Modbus TCP, Modbus TCP to Modbus RTU transfer
- Transparent transmission: Mode: TCP Server/Client, UDP Server/Client, RealCom, UDP Range, UDP Multicast, Pair Master/Slave
Others
- Reset button: 1 x RST
- LED indicators: 1 x WAN, 4 x LAN, 2 x SIM, 1 x PWR, 1 x WiFi
- Watchdog: Built-in Hardware and Software
Hardware & Physical Characteristics
- CPU: Dual Core 880MHz
- RAM: 256 MB
- FLASH memory: 16 MB
- Ingress Protection: IP41
- Housing & Weight: Metal, 425g
- Dimension: 152 x 104 x 25 mm (L x W x H)
- Installations: Desktop, wall mounting
- Operating temperature: -30 °C to 70 °C
- Storage temperature: -40 °C to 85 °C
- Relative humidity: <95%(no condensation)
Power Supply and Consumption
- Power Connector: DC Round Hole Power
- Voltage Input: 7.5 – 32 V DC, reverse polarity protection, surge protection
- Power consumption: < 3 W
Software (Qixiang OS)
- Network protocols: PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP , ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, FTP, SNMP, DDNS, UPnP, MQTT, QoS etc.
- APN: Auto APN, customs APN, and VPDN
- VPN Client Modes: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE, EOIP
- Firewall: DMZ, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control, NAT, Port Forword, Black/White List
- Auto Fail-over (Optional): Between Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode)
- Load Balancing (Optional): Balance your internet traffic over multiple WAN connections
- Network Monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
- SDK: SDK package with built environment provided
- Remote Management: HTTP, Qixiang Cloud Platform
Regulatory and Type Approvals
- Regulatory: CE, RoHS, Wi-Fi Certified, CCC
- Operator: Global, customize for your country's cellular bands
- Standards: EN 301 489-1 V2.2.0:2017; EN 301 489-17 V3.2.0:2017; EN 300 328 V2.1.1:2016; EN 62311:2008; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; IEC 62321:2013/2015. etc.
